Non-magnetic drill collar

Non-magnetic drill collar is made of independently developed low-carbon stainless steel in accordance with API Specifications and SY/T5144 Standards. Threads can be processed with cold rolling. We can process double-shoulder threads and other specifications of special threads.

Key words:

Product Classification:

Email：

Telephone:

Non-magnetic drill collar

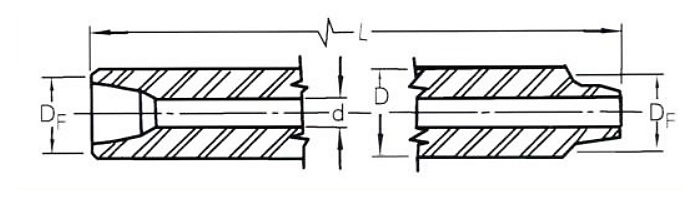

● Dimensional specification

Drill collar No. Sel.	OD		ID		mm Length	Df mm	Bendingstrength ration
Drill collar No. Sel.	mm	in	mm	in	mm Length	Df mm	Bendingstrength ration
NC23-31	79.4	31/8	31.8	11/4	9150	76.2	2.57:1
NC26-35	88.9	31/2	38.1	11/2	9150	82.9	2.42:1
NC31-41	104.8	41/8	50.8	2	9150 or 9450	100.4	2.43:1
NC35-47	120.7	43/4	50.8	2	9150 or 9450	114.7	2.58:1
NC38-50	127.0	5	57.2	21/4	9150 or 9450	121.0	2.38:1
NC44-60	152.4	6	57.2	21/4	9150 or 9450	144.5	2.49:1
NC44-60	152.4	6	71.4	213/16	9150 or 9450	144.5	2.84:1
NC44-62	158.8	61/4	57.2	21/4	9150 or 9450	149.2	2.91:1
NC46-62	158.8	61/4	71.4	213/16	9150 or 9450	150.0	2.63:1
NC46-65	165.1	61/2	57.2	21/4	9150 or 9450	154.8	2.76:1
NC46-65	165.1	61/2	71.4	213/16	9150 or 9450	154.8	3.05:1
NC46-67	171.4	63/4	57.2	21/4	9150 or 9450	159.5	3.18:1
NC50-67	171.4	63/4	71.4	213/16	9150 or 9450	159.5	2.37:1
NC50-70	177.8	7	57.2	21/4	9150 or 9450	164.7	2.54:1
NC50-70	177.8	7	71.4	213/16	9150 or 9450	164.7	2.73:1
NC50-72	184.2	71/4	71.4	213/16	9150 or 9450	169.5	3.12:1
NC56-77	196.8	73/4	71.4	213/16	9150 or 9450	185.3	2.70:1
NC56-80	203.2	8	71.4	213/16	9150 or 9450	190.1	3.02:1
65/8REG	208.6	81/4	71.4	213/16	9150 or 9450	195.7	2.93:1
NC61-90	228.6	9	71.4	213/16	9150 or 9450	212.7	3.17:1
75/8REG	241.3	91/2	76.2	3	9150 or 9450	223.8	2.81:1
NC70-97	247.6	93/4	76.2	3	9150 or 9450	232.6	2.57:1
NC70-100	254.0	10	76.2	3	9150 or 9450	237.3	2.81:1
85/8REG	279.4	11	76.2	3	9150 or 9450	266.7	2.84:1

● Main tolerance dimensions

OD		OD	ID	Length	DF Bendingstrengthratio
mm	in	OD	ID	Length	DF Bendingstrengthratio
≤88.9	≤31/2	+1.20	+1.60	+152.4	±0.4
>88.9∽114.3	>31/2∽41/2	+1.60
>114.3∽139.7	>41/2∽51/2	+2.00
>139.7∽165.1	>51/2∽61/2	+3.20
>165.1∽215.9	>61/2∽81/2	+4.00
>215.9∽241.3	>81/2∽91/2	+4.80
>241.3	>91/2	+6.40

● Mechanical properties

OD		Yieldstrength		Tensilestrength		Elongation	Shrinkage	Hardnes	Impact Akv
mm	in	Ksi	Mpa	Ksi	Mpa	%	%	HB	J
≤180	≤7	≥120	≥828	≥135	≥931	≥25	≥50	285-360	≥75
>180	>7	≥110	≥759	≥130	≥897	≥25	≥50	285-360	≥75

Magnetic property

(Magnetic field = 1 × 10₅/4π A/m)

1. Relative magnetic permeability μr <1.010

2. Magnetic gradient ΔB ≤0.05 μT
