Spiral drill collar

Spiral drill collar is made of AISI4145HS Cr-Mo steel in accordance with API Specifications and SY/T5144 Standards. Threads can be processed with cold rolling, coppering or phosphating. We can process double-shoulder threads and other specifications of special threads and can also produce drill collars whose outer diameter is 14 inches.

Key words:

Spiral drill collar

Product Classification:

Email：

Telephone:

Spiral drill collar

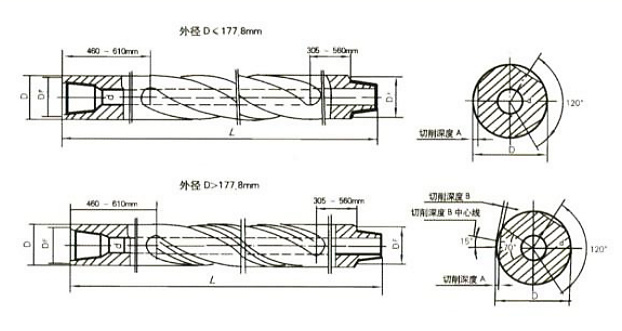

● Dimension of spiral groove

OD		A Depth of cut mm	Lead ±25.4Pitch mm	B Depth of cut mm
mm	in	A Depth of cut mm	Lead ±25.4Pitch mm	B Depth of cut mm
98.4	37/8	4.0±0.79	914
101.6-111.1	4-43/8	4.8±0.79	914
114.3-130.2	41/2-51/8	5.6±0.79	965
133.4-146.1	51/4-53/4	6.4±0.79	1067
149.2-161.9	57/8-63/8	7.1±1.59	1067
165.1-177.8	61/2-7	7.9±1.59	1168
181.0-200.0	71/8-77/8	8.7±1.59	1626	2.6±0.79
203.2-225.4	8-87/8	9.5±1.59	1727	6.4±0.79
228.6-250.8	9-97/8	10.3±2.37	1829	7.1±1.59
254.0-276.2	10-107/8	11.1±2.37	1930	7.9±1.59
279.4	11	11.9±2.37	2037	8.7±1.59

Note: spiral drill collar is equipped with 3 spiral grooves featuring right-handed rotation an even distribution.
